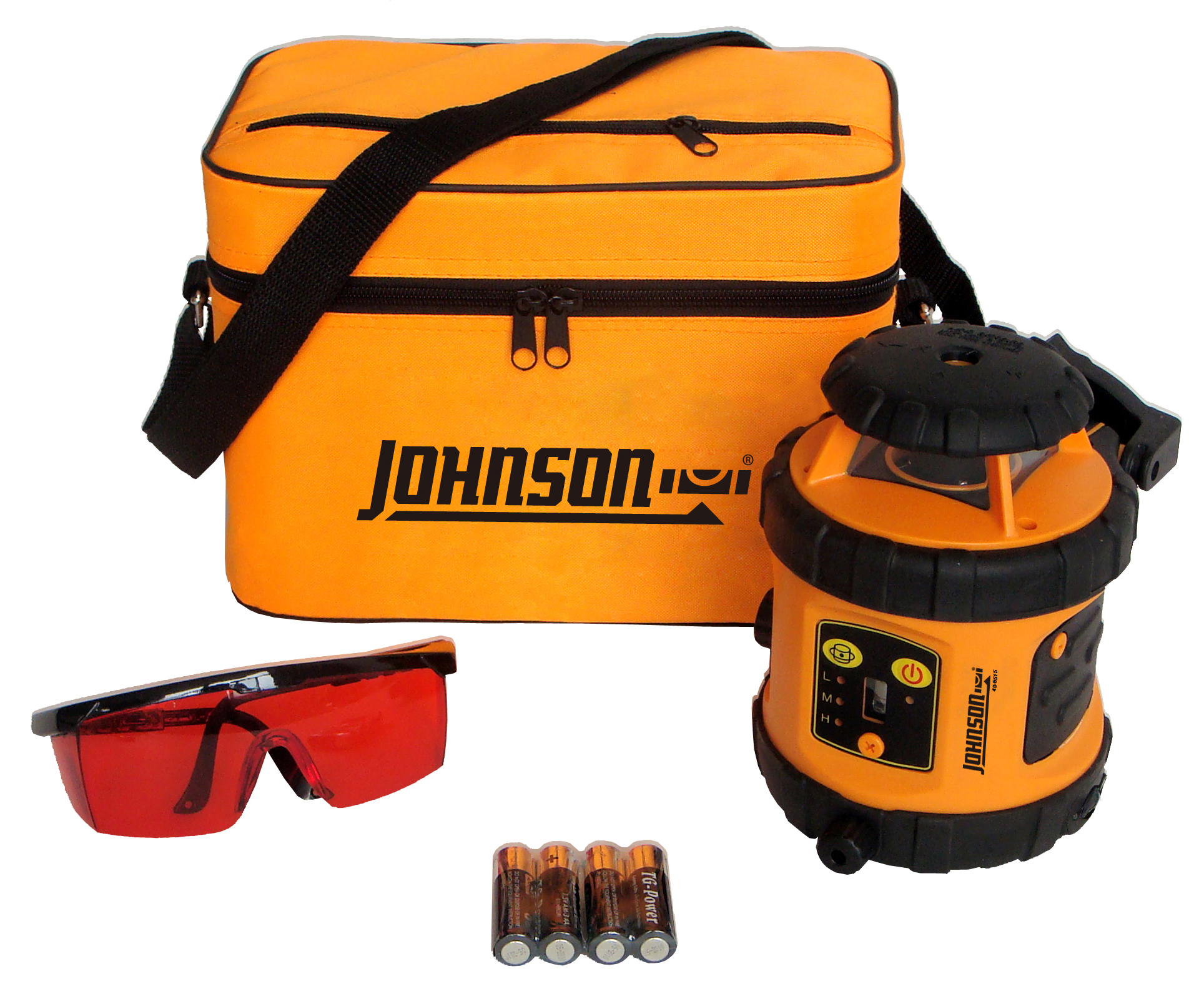

Johnson's 40-6515 Includes:
|

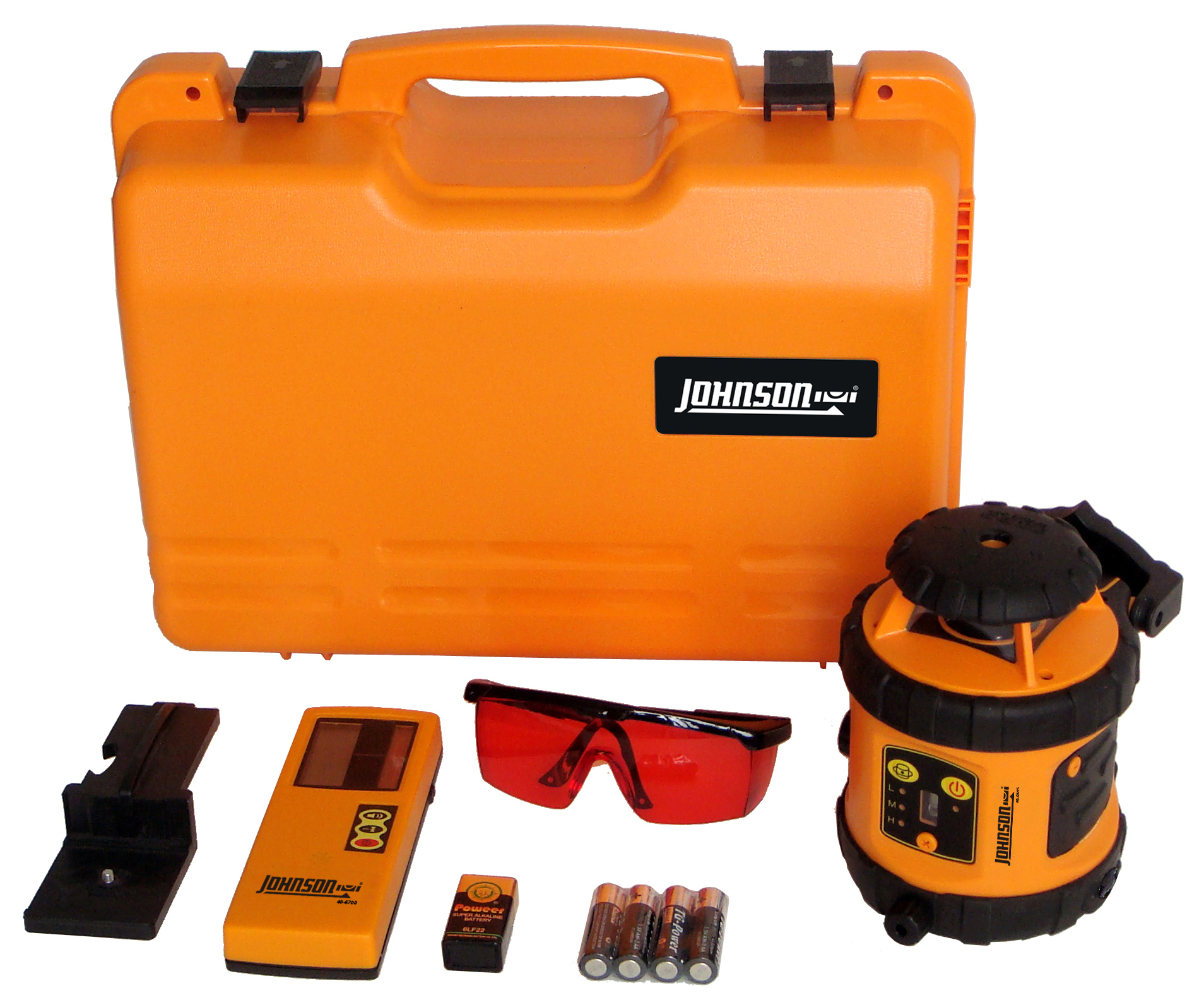

Johnson's 40-6516 Includes:
|

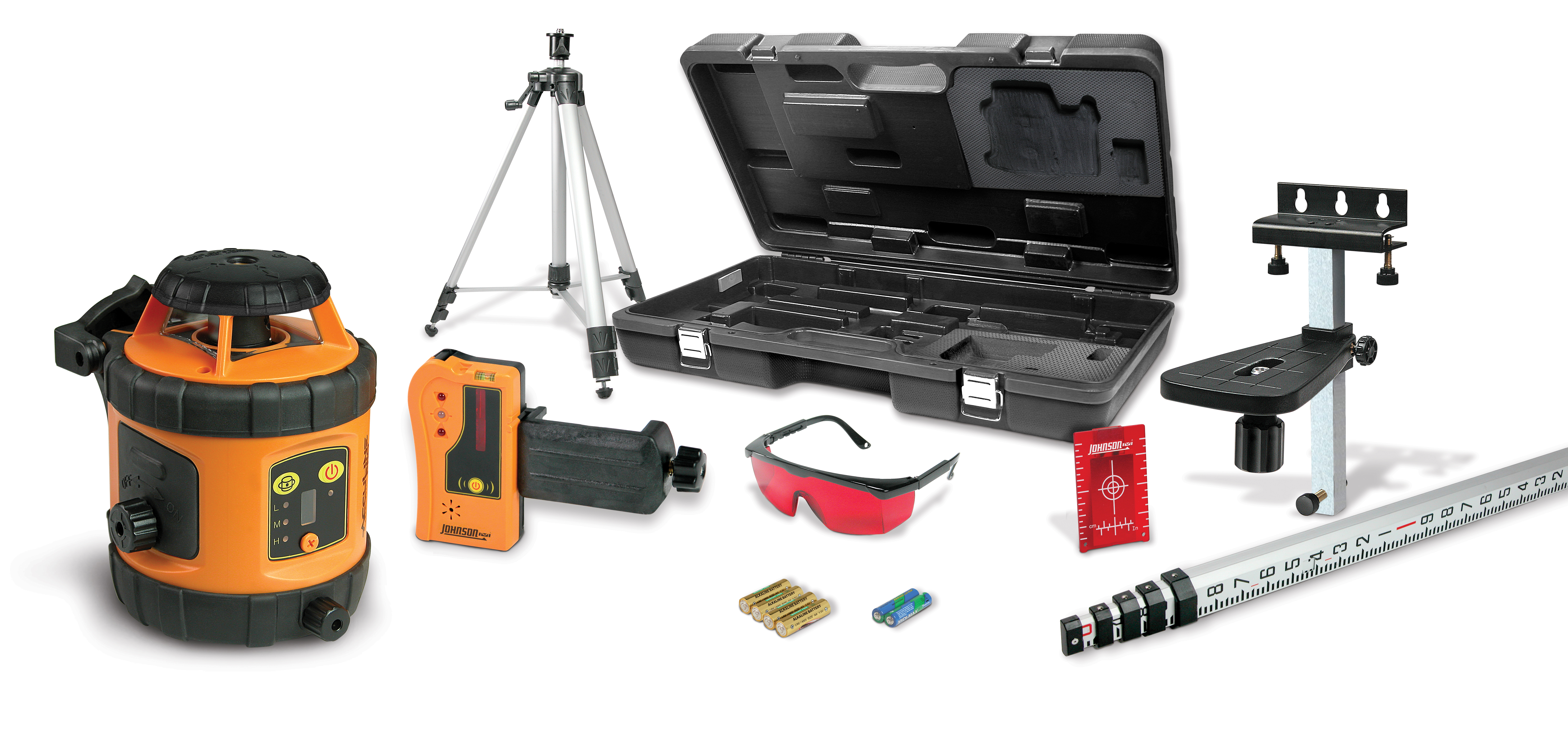

Johnson's 40-6517 Includes:
|
|
| Dimensions: | 4.96" x 6.69" x 6.61" (126 x 170 x 168mm) |
|---|---|
| Exterior Range: | Up to 800` diameter (240m) with detector |
| Grade Setting: | N/A |
| Interior Range: | Up to 200` diameter (60m) with detector |
| IP Protection Class: | 54 |
| Laser Classification: | Class IIIa |
| Laser Wavelength: | 635nm +/-10nm |
| Leveling Method: | Self-Leveling (Pendulum) |
| Maximum Power Output: | <=5mW |
| Power Supply: | 4 "AA" alkaline batteries (included) |
| Remote Range: | N/A |
| Rotation Speeds: | 200, 400, 600 rpm |
| Scanning Modes: | N/A |
| Slope: | N/A |
| Warranty: | 3 Years |
| Weight: | 3.3 lbs. (1.5kg) |
| Working Temperature: | 14F to 113F (-10C to +45C) |
| Accuracy: | +/-1/8"/50ft. (+/-2mm/10m) |
| Auto-Leveling Range: | +/-3 degrees |
| Battery Life: | Approximately 20 hours continuous use |
| Center Screw Thread: | 5/8"-11 |

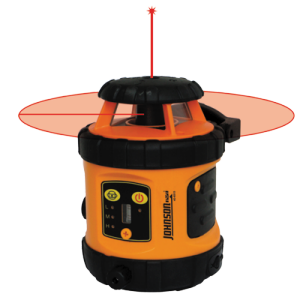

The 40-6515, 40-6516, and 40-6517 rotary laser can be used for the following indoor and outdoor applications,
- Leveling
- Checking cut and fill
- Setting foundations and footings
- Concrete pours
- Spetic tanks and basement excavations
- Acoustical ceiling and drywall
- Align and plumb walls
- Metal stud and wood framers
- Level deck floors
- Establish diagonals and footing
- Contour framing, drainage
- Terracing and retaining walls
Johnson Level Rapid Response Center for Repair and Service
In the U.S., call 888-953-8357 from 8AM-5PM CT. In Canada, call 514-695-7221 8AM-5PM ET.
Download 40-6515 Kit High Resolution Image
Download 40-6516 Kit High Resolution Image
Download 40-6517 Kit High Resolution Image
Rotary Laser Level Instruction Manuals
40-6515/40-6516/40-6517 - Trilingual
Other Johnson Laser Level Support
List of Authorized Non-Warranty Laser Level Service Centers
Laser Level and Level Full Warranties
All Leveling Product Manuals
Johnson Level Marketing Support
